21.5 Inch Floor Standing Advertising Kiosk With Hand Sanitizer Spray Dispenser
| Main Specification |
| Product Name | 21.5" Hand Sanitizer LCD Digital Signage |
| Brand | LG/AUO/BOE brand LCD panel(Full new A quality original LCD) |
| Resolution | 1080*1920 |
| Contrast ratio | 3000:01:00 |
| Brightness | 250cd/m2 |
| Active area(mm) | 473*296mm |
| Touch screen | Non touch Screen and Capacitive Touch Screen |
| Tempered glass is used as the cover of the capacitive screen |
| Interior of the tempered glass to achieve the purpose of long-term antibacterial and antibacterial A layer of antibacterial |
| Protective film is affixed to the surface of the glass |
| Complete product. |
| Android |
| CPU | Android Rockchip Rk3288 Quad-core CPU |
| Memory | 2GB |
| Nand flash | 8GB Flash |
| Storage port | USB |
| OS | Android 8.1 the newest 0S version |
| WiFi | Yes, inbuild WiFi(802.11b/g/n); 3G/GPS/Bluetooth(optional) |
| 4G module | Option |
| Auto Sanitizer |
| Dispensing Life | >=650000 cycles |
| Disinfectant Bottle volume | 5L volume |
| Dispensing Volume | Support adjust for Gel; Foam; Liquid. |
| Indicatior Light | Indicatior Light for Sanitiser |
| Pump | Standard pump for Liquid |
| Power Supply | AC adapter |
| Advertising CMS |
| Support video | MPEG1/MPEG2/MPEG4/AVI/VOB/MOV/WMV/DIVX/RM/RMVB, support |
| super HD 2160P video |
| Support picture | JPG/JPEG/ PNG/BMP |
| Support TXT | TXT/WORD/EXCEL/PDF |
Technique Parameter for LCD Panel:
1. Size of Screen: 21.5 inch
2.Panel Brand :LG Original Full New 100% A+ Grade Brand Panel
3.Using Life: 50000 hours
4.Display ratio:16:9
5.Resolution:1920*1080 FHD
6.Viewing angle:178°/178°(H/V)
7.Color:16.7M
8:Backlits:LED
9:Brightness : 250nits
10.Contrast: 1500:1
11.No touch (PCAP touch optional)
12.Build USB camera on the top of the screen
13.Build the IR sensor in the side of the screen to detect the temp of wrist & forehead (5cm/ 50cm for options )
14.With Automatic Hands sanitizer dispenser build in,capacity of 1000ml/3000ml hand soap maximum
Android solution: 2 solution options :
A: Cheaper solution
1.CPU:4 core A53 CPU 1.5GHZ
2.GPU: Mali450*4core
3.RAM: 1GB DDR
4.ROM: 8GB eMMC
5,Operating system: OS Android6.1.1 Build in Google play in system
B:
1,CPU: 4 core Cortex-A17, 1.8GHZ
2,GPU: ARM Mali-T764 GPU
3,DDR: DDR3 2G
4,ROM NAND FLASH: 8G ,Exteral ROM Support up to 32G bytes sd card
5,Operating system: OS Android 7.1.1 Build in Google play in system
6,Video playing: Support: AVI(H.264,DIVX,DIVX,XVID), rm,rmvb, MKV(H.264,DIVX,DIVX,XVID),WMV,MOV,MP4(.H.264,MPEG,DIVX,XVID),DAT(VCD
format),VOB(DVD format),PMP,MPEG,.MPG,, FLV(H.263,H.264),ASF , TS, TP,3GP,MPG..etc
7,Video Resolution Up to 3840*2160
8.Support:MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV.
9.,Additional: Photo format: JPG,BMP,PNG,GIF..etc up to the resolution 4096*4096
Other powerful special function compare to other vendor:
1.Height Adjustment Supported
2.Lack of Hand Sanitizer Satus Detection
3.CMS Software Provide with free cloud service
4.Spray,Soap/Gel,Foam Supported options, offer one of them
5.Body Temperature Testing
6.Multi-Language Body Temperature Display on Screen:(English, Italy, Spain, Portugal, German, French, polish, Russian,
Arabic,Chinese)
7.Multi-Language Body Temperature Voice Speech:(English, Italy, Spain, Portugal, German, French, polish, Russian,Arabic) 8.Lack of Sanitizer Information Display on Screen with Alarm words
9.Remote Monitoring Lack of Sanitizer by Cloud Service.
10.Hand Sanitizer Digital Signage Related Patent Now 11.Software API Supporting
Working Environment:
Temperature
Working temperature: 0°C~50°C
Storage temperature: -20°C~60°C
Power supply:
Industiral High level Power moduel AC100~240V 50 /60 HZ
Maximum power consumption: 50W
Standby power consumption: <3W
Outer shell:
1. Main outer shell is made by extra quality Iron material
2. With a protection layer of high-penetrating Tempered glass (with 3mm-4mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture.

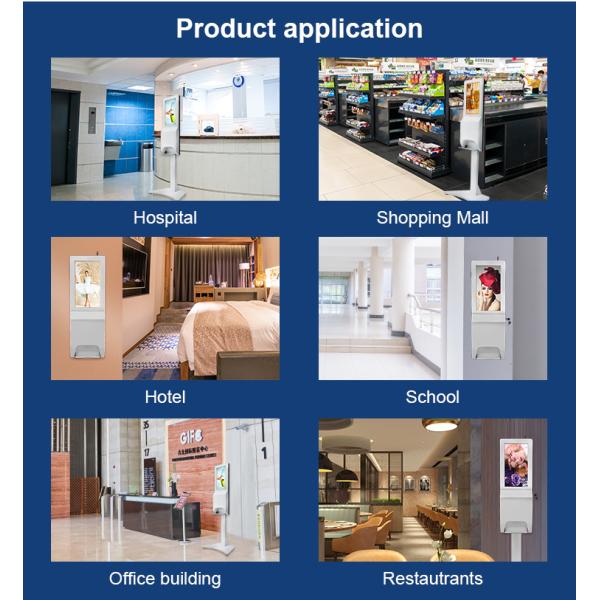

Application:
Public places: bookstores, exhibition halls, stadiums, museums, conference centers, talent markets, etc .;
Entertainment and leisure: cinemas, fitness gyms, resorts, entertainment venues, foot baths, KTV bars,
beauty salons, golf courses, etc .;
Commercial institutions: Western restaurants, fast food restaurants, supermarkets, chain stores, 4S stores,
specialty stores, star hotels, travel agencies, drug stores, etc .;
Industrial sites: food processing equipment, machinery control, office automation equipment, automated testing,
automotive testing equipment, etc .;
Exhibtion:
Our main products:
Stand floor digital signage/ Wall mount digital signage/ Outdoor digital signature/
Elevator digital signage/ Hanging double side digital signage/ LCD video wall/
Transparent showcase etc.
Welcome to cooperate on mutual benefits together. Many thanks!
